Product Overview

Mortar Barrel Inspection System BISv9.0.1

Highly Reliable Mortar Barrel Inspection System, Live-View, Video Streaming, Quick snapshots, Clear surface View, Linear defect Measurements, Gun multimedia Databases

BISv9.0.1 (81mm) Features

  • The BISv9.0.1 is a Complete Barrel Inspection System for Measuring, Analysing, Documenting and for maintaining visual Databases for Mortar Barrels.
  • BISv9.0.1has been designed keeping in view Requirements of Armed forces.
  • The system has been designed simple with Easy to setup in minutes and operate, It is operated easily by Non technicals & Techs both. The system is very high on EASE-OF-USE with Technology
  • The complete BISv9.0.1 can be installed/ dismantled in minutes and can be carried for quick deployment and mobility.
  • Camera module glides through BARREL-SIZE-adapters and it do not cause any harm/scratches to surface of barrel.
  • Very fast, efficient instrument, takes less than 5 minutes to check one barrel.
  • New improvised camera with total 12x zoom(3x4) gives direct live view of surface of barrel with excellent clarity at High resolution(HD++).
  • BISv9.0.1 allows military Units to do quality control and inspection of gun barrels. It is a perfect tool for barrel inspection, as it provides visual evidence of the Actual Defects (with exact position and angle).

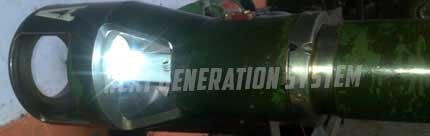

  • The borescope has state-of-the art lighting system. which gives Milky-white light for crystal clear view of inside surface of barrel at desired angles. It minimizes Glare, so areas like jet hole/fume hole /defects/breach end section are clearly visible.
  • The intensity of Milky-white lights is user controllable for Varity of surfaces. (Smooth-Bore as well as Rifled-guns, breach end).
  • LED-based lights provide flexible lighting systems allowing selectable LEFT & RIGHT Light zones FOR CLEAR VIEW OF DEFECT, as Only Right combination of light-angles and their intensities can produce desired results.
  • Snapshots of surface of barrel / DEFECT can be taken with click of button
  • BORObase software has been developed for need for Armed forces; BORObase has hosts of features and utility modules. It has a simple central interface management which integrates all control parameters for database management, Report management, tools for converting Reports in formats like Excel, pdf etc.
  • The Live View can be duplicated on multiple and Bigger LCD Screens or to an LCD Projector for further investigation or later review or to an external device.
  • BOROBASE has a Special Software module for measuring Linear Dimension of Cracks/Defects and maintains a date wise database, gun wise database, and Unit wise/battalion wise database in addition to logical database.
  • BOROBASE software maintains Snap shot database, video-stream database of gun barrel, so that Inspection reports are analyzed, reviewed Qualitatively as well as Quantitatively later on. There is no need of Repeating Gun inspection.
  • BOROBASE has a Special Software module for Actual Ageing analysis of minor cracks, chipping, pits etc.

Tested for Following artillery GUN barrels and Armored guns

ALL IFGS((Indian field Guns 105mm, 120mm, 130mm), 81mm mortar
BOFORS
T-55
T-72
T-90
MBT-ARJUN
DHANUSH
HOWITZER 155
  • The complete system is Designed, Developed and manufactured by Next Generation systems, Amritsar Indigenously.
  • Specific CUSTOMIZED camera module can also be available for Rocket tubes INSPECTION (200mm and above) on Request.
  • The complete system is designed, Developed and manufactured by Next Generation systems, Amritsar Indigenously,
  • Any required customization/ up gradation and any Technology changes can be incorporated by us as per requirements of end user.
  • We are constantly improving and updating quality and Technology for our BARREL INSPECTION SYSTEM
  • Online support /tech-support/training are available from our office location ONLY.
  • BISv9.0.1(PATENT Pending) Developed, Designed and Manufactured by Next Generation Systems

Our Customers

  • The system has been extensively tried and tested for more than 8yrs by Armored, Artillery maintenance groups, EME Workshops, DRDO AND DMRL-DRDO, PXE for smooth bore as well large bore Rifled guns in field firings, field trials and firing inspection.
  • THE system is in use by Various EME workshops of Indian Army
  • THE system is in use by DMRL, DRDO-INDIA, FIELD GUN FACTORY, KANPUR and PXE-CHANDIPUR
