NGS-BIS 8.7.1T (125mm) Features

• The NGS-BIS 8.7.1T is a Complete Barrel Inspection System for Measuring, Analysing, Documenting and for maintaining visual Databases for Large Barrels.

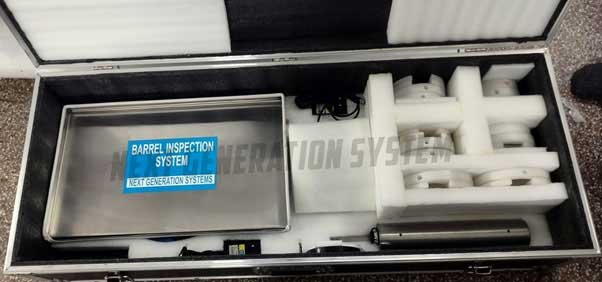

• The complete system can be installed & dismantled in minutes and can be carried for quick deployment and mobility. The system is high on Technology with EASE-OF-USE
• Inovative design, specially designed close focus camera, which looks directly on to surface of barrel, gives real time view of defect, much better than other pipe-view systems.
• Highly flexible insertion system expandable up to 750cm for Large tank Guns.
• NGS-BIS models have been Tested on most of Artillery guns and armored guns like, T-72, T-90, MBT-ARJUN, HOWITZER, BOFORS, IFG, DHANUSH, ATAGS
• Most movable parts are made of steel for ruggedness and longevity of systems

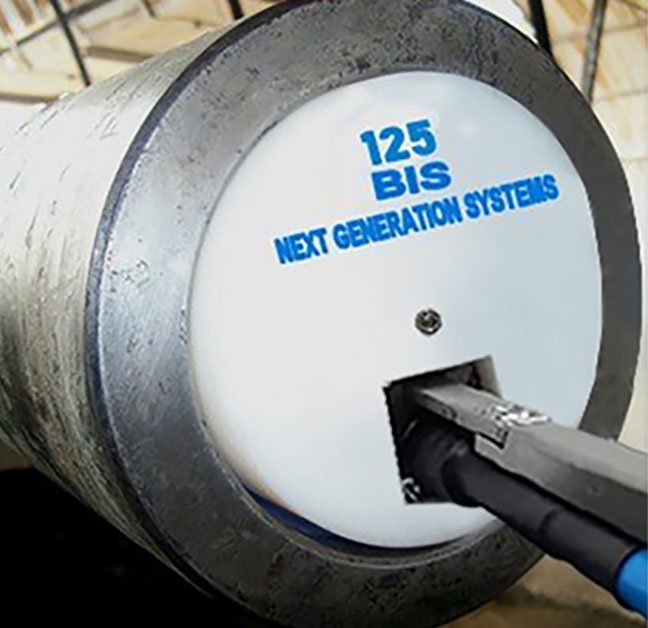

• Camera system glides through specially made barrel-size-adapters which do not cause any harm/scratches to surface of barrel.
• Fast & efficient instrument, takes less than 8 minutes to check one barrel of T-72/T-90
• New improvised camera with total 12x zoom(3x4) gives direct live view of surface of barrel with excellent clarity at High resolution(HD++).
• NGS-BIS 8.7.1T allows organizations to do quality control and inspection of barrels. It is a perfect tool for barrel inspection, as it provides visual evidence of the Defects with exact location and angle.
• Snapshots of surface of barrel and DEFECT can be taken with click

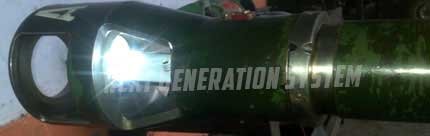

• The Borescope has controller based illumination system, which provide selectable Light zones with variable intensity control for clear view of barrel at different angles, as Only Right combination of lights, angles and their intensities can produce desired results.
• The intensity of Milky-white lights LEDs is user controllable for Varity of surfaces like Smooth as well as Rifled-barrels & breach ends. Defects can be viewed with different light zones and analyzed with ease.
• THE Live View can be duplicated on multiple and Bigger LCD Screens or to an LCD Projector for further investigation or later review or to an external device.
• BORObase software has been developed for need for Digital barrel inspection; BORObase has hosts of features and utility modules. It has a simple central interface management which integrates all control parameters for database management, Report management, tools for converting Reports in formats like Excel, PDF etc.
• BOROBASE has a Software Section for measuring Linear Dimension of Cracks/Defects.
• BOROBASE has a Special Software module for Measuring Actual Ageing analysis of old cracks, chipping, pits etc.
• BOROBASE software has comprehensive Logical databases which can be managed, Date-wise, barrel wise, department wise.
• BOROBASE software maintains Snap shot database, video-stream database of gun barrel, so QUALITY ASSURANCE Inspections are easy to report quickly without Repeating barrel inspection.
• NGS-BIS 8.7.1T has a stainless steel adjustable stand for notebook base and Control box for ease of use.
